Built in-house using Genuine Borg Warner center sections, the DAP S475/83/1.10 T6 is a great option for towing compounds on the mildly fueled 1994-2002 5.9L applications. Supports up to 600HP in compounds. Offers quicker spool-up than commonly used 475/96/1.32 T6. Great for higher elevation and using an hx35, k27, he351, or 57mm borg turbo in compound set up. Using the standard 5" inlet and v-band outlet cover, this turbo will drop right in place of the popular 171702 S475/96/1.32 T6 turbocharger. These units are a very streetable atmosphere turbos in compound kits. Key Turbo Features: Twin hydrodynamic journal bearings Extended Tip Technology Compressor Wheel Twin Scroll Turbine Housing Adjustable compressor and turbine housing orientation Compressor cover re-circulation grooves Turbo Specifications: Compressor Wheel Inducer Diameter (mm): 74.5 mm Turbine Wheel Outer Diameter (mm): 83mm Turbine Wheel Exducer (mm): 74mm Turbine A/R: 1.15 Turbine Inlet Style: T6 Scroll Type: Twin 5" V-Band Outlet (5.75 OD Tapered Flange)

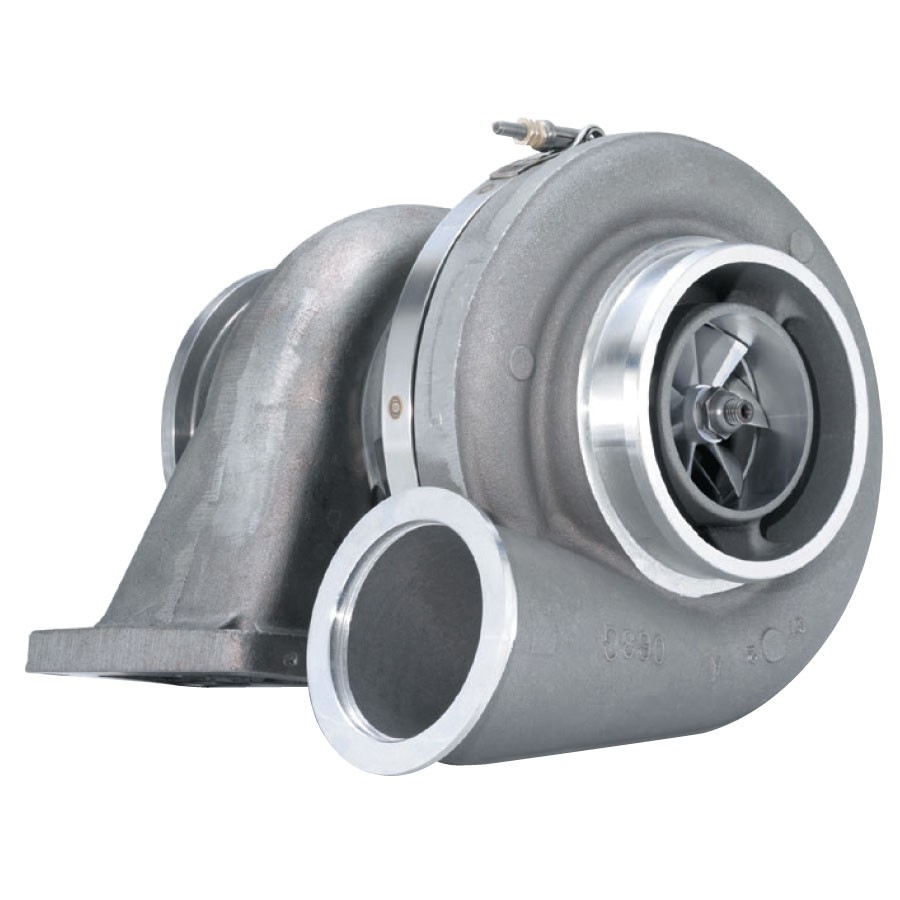

Quick Spool S400 Turbo 475/83/1.10 T6 Borg Warner
