S480/96/1.32 T6 Borg Warner Turbo


S480/96/1.32 T6 Borg Warner Turbo
Purchase S480/96/1.32 T6 Borg Warner Turbo
  • SKU: DAP-S480SC96-1-32
    0

    S480/96/1.32 T6 Borg Warner Turbo

  • Brand: Diesel Auto Power Application: Universal
  • $1,049.49

Product description

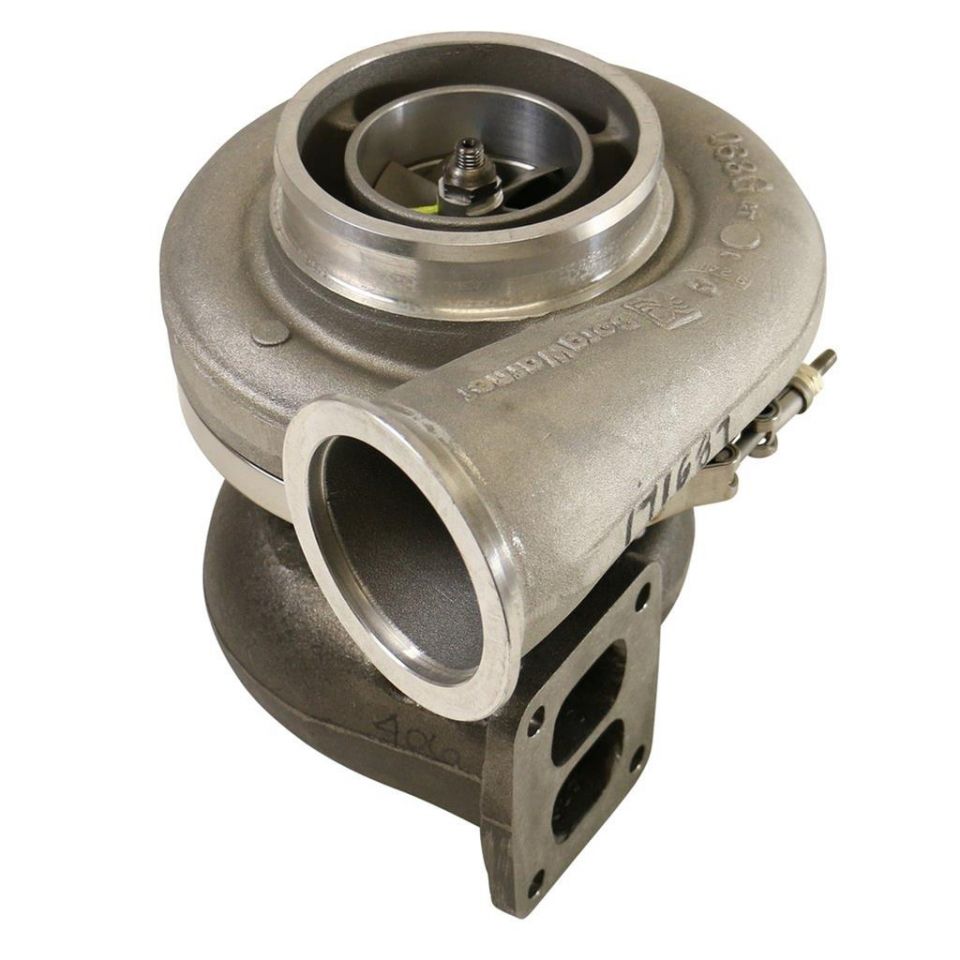

Built in-house using Genuine Borg Warner center sections, the DAP S480/96/1.32 T6 is an excellent option for high performance twin turbo kits. Using the standard 5" inlet and v-band outlet cover, this turbo will drop right in place of the popular 171702 S475/96/1.32 T6 turbocharger. The 80mm compressor wheel flows substantially more air than the 75mm version, making it more than capable of 850+ horsepower in most applications. These units are still very streetable atmosphere turbos in compound kits, and paired with the tighter 1.15 a/r exhaust housing it can still work really well for heavy towing.

Key Turbo Features:

  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Twin Scroll Turbine Housing
  • Adjustable compressor and turbine housing orientation
  • Compressor cover re-circulation grooves

Turbo Specifications:

  • Compressor Wheel Inducer Diameter (mm): 80mm
  • Compressor Wheel Inducer Diameter (in): 3.16
  • Compressor Wheel Outer Diameter (in): 4.32
  • Turbine Wheel Outer Diameter (mm): 96mm
  • Turbine Wheel Outer Diameter (in): 3.77
  • Turbine Wheel Exducer (mm): 88mm
  • Turbine Wheel Exducer (in): 3.47
  • Turbine A/R: 1.32
  • Turbine Inlet Style: T6
  • Scroll Type: Twin
  • 5" V-Band Outlet (5.75 OD Tapered Flange)
